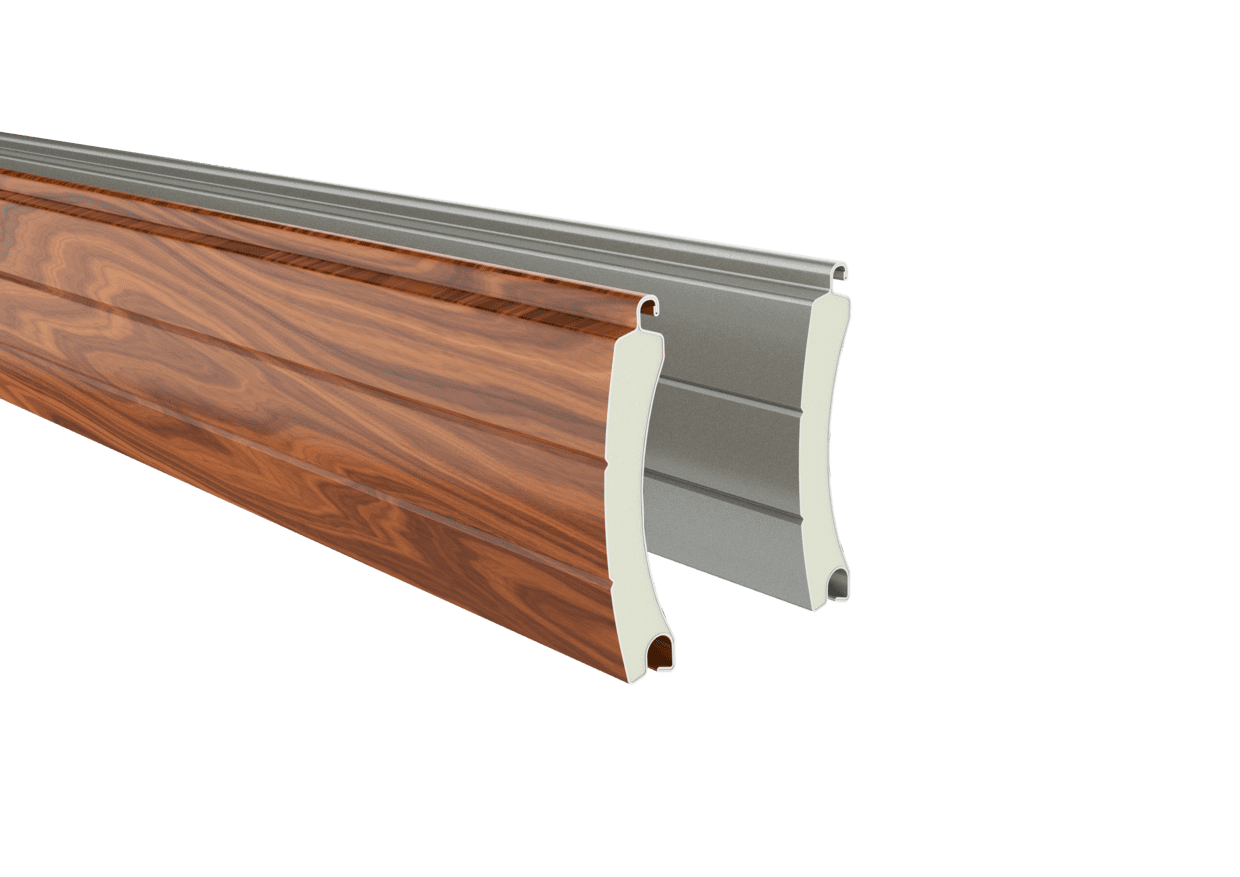

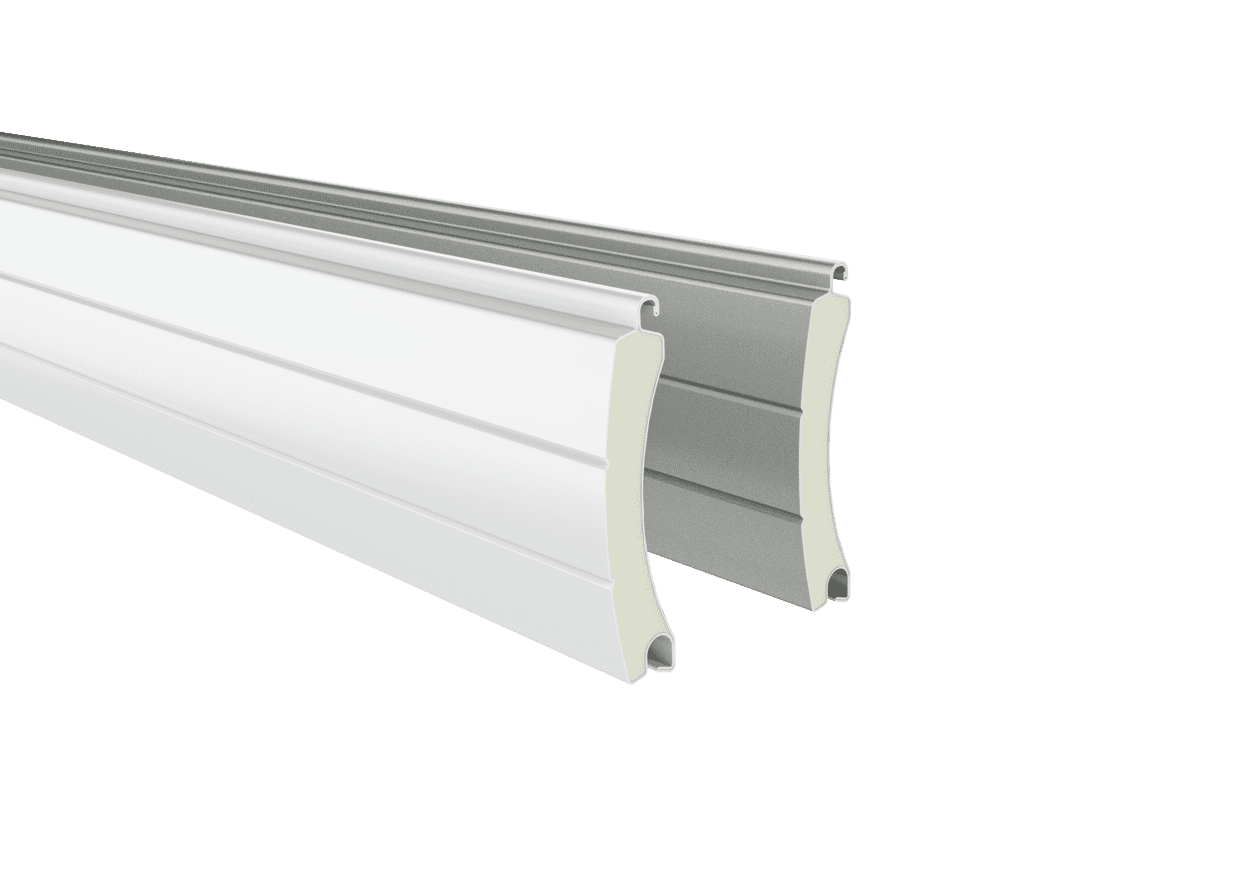

77MM*0.68MM ALUMINUM SLAT WITN PVC COATING
Rolling shutter slats are made of aluminum and filled with a very dense ecologic foam for added strength and superior insulation value.
The PVC lamination process is a special treatment of PVC film by high temperature on the metal plate, with wear-resistant,scratch-resistant, strong adhesion, and other unique properties, to achieve a combination of beauty and durability in one of the uses of value.




Specifications
| size | 77mm |
| Norminal thickness | 18.6mm |
| Plate thickness | 0.68mm |
| Weight | 350g/m, 4.55kg/m² |
| PU density | 60-65kg/m³ |
| Max shutter width | ≤6.0m |
| Max shutter height | ≤5.0m |
| Slats per meter | 13pcs |
Packing data
| Slat length | 3.0m-7.5m |
| Slats per package | 10pcs |
Different colors
For all the visible surfaces of our products made of aluminum, we offer five common color combinations or customized by RAL colors.
The color scheme will always match your building space perfectly.
