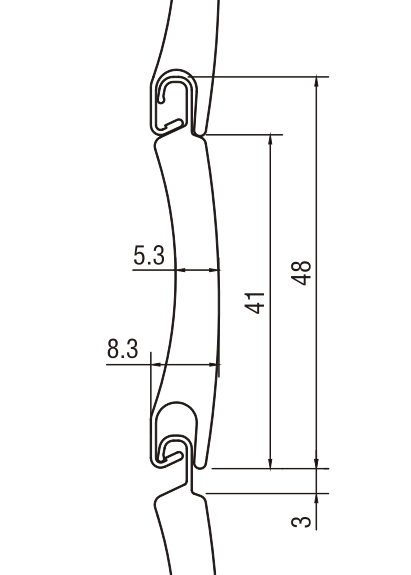

41MM*8.3MM ALUMINUM SLAT
Rolling shutter slats are made of aluminum and fifilled with a very dense ecologic foam for added strength and superior insulation value. The standard 39mm/45mm/55mm slats are our most commonly used slats for rolling shutter windows.
Roll formed aluminum slat
Powder coated finish for longevity
Five standard colors
Slats interlock together to prevent
separation under load
Used for rolling shutter on windows
kitchen cabinets, trucks and so on.
Specifications
| Size | 41mm |
| Norminal thickness | 8.3mm |
| Plate thickness | 0.28mm |
| Lighting hole size | 1.5x17mm |
| PU density | 60kg/m³ |
| Max shutter width | ≤3.5m |
| Max shutter height | ≤3.5m |
| Slats per meter | 24.2 pcs |
Packing data
| Slat length | 5.1m-6.5m |
Reference size of winding diameter
| Height | 40 Shaft | 50 Shaft |
| 600 | 105 | 120 |
| 800 | 125 | 140 |
| 1000 | 140 | 140 |
| 1200 | 145 | 160 |
| 1400 | 160 | 160 |
| 1600 | 165 | 170 |
| 1800 | 170 | 180 |
| 2000 | 180 | 185 |
| 2200 | 180 | 195 |
| 2400 | 195 | 195 |
| 2600 | 200 | 200 |
| 2800 | 200 | 215 |
| 3000 | 215 | 215 |

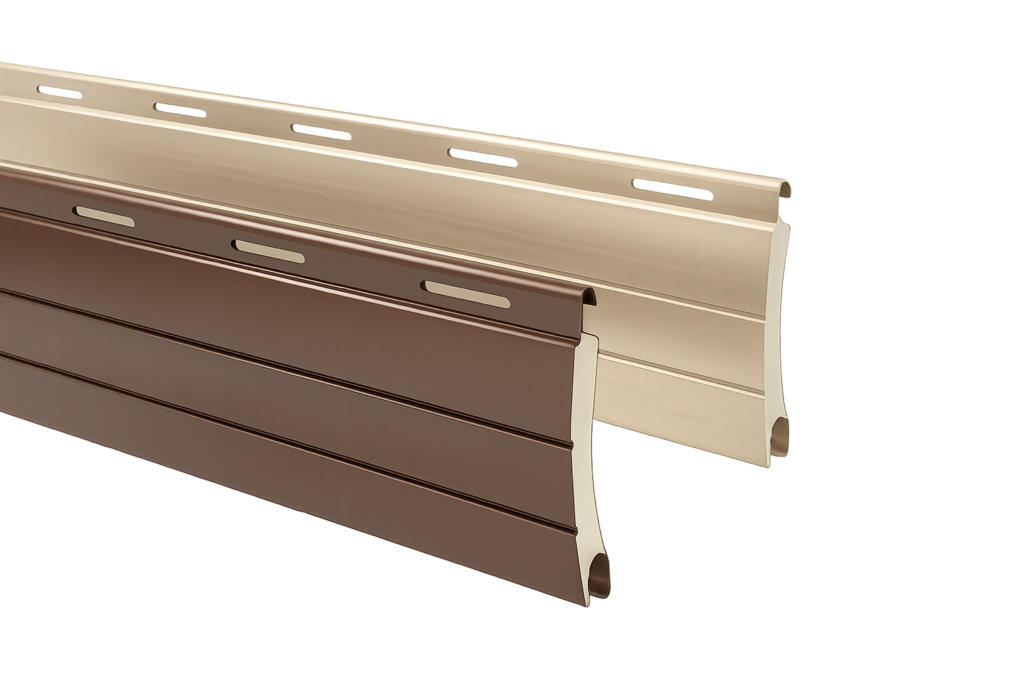

Different colors
Rolling shutter slats are made of aluminum and filled with a very dense ecologic foam for added strength and superior insulation value. The standard 39mm slat is our most commonly used slat.
41MM*8.3MM ALUMINUM SLAT
Rolling shutter slats are made of aluminum and fifilled with a very dense ecologic foam for added strength and superior insulation value. The standard 39mm/45mm/55mm slats are our most commonly used slats for rolling shutter windows.
Roll formed aluminum slat
Powder coated finish for longevity
Five standard colors
Slats interlock together to prevent separation under load
Used for rolling shutter on windows, kitchen cabinets, trucks and
so on.
Specifications
| Size | 41mm |
| Norminal thickness | 8.3mm |
| Plate thickness | 0.28mm |
| Lighting hole size | 1.5x17mm |
| PU density | 60kg/m³ |
| Max shutter width | ≤3.5m |
| Max shutter height | ≤3.5m |
| Slats per meter | 24.2 pcs |
Packing data
| Slat length | 5.1m-6.5m |
Reference size of winding diameter
| Height | 40 Shaft | 50 Shaft |
| 600 | 105 | 120 |
| 800 | 125 | 140 |
| 1000 | 140 | 140 |
| 1200 | 145 | 160 |
| 1400 | 160 | 160 |
| 1600 | 165 | 170 |
| 1800 | 170 | 180 |
| 2000 | 180 | 185 |
| 2200 | 180 | 195 |
| 2400 | 195 | 195 |
| 2600 | 200 | 200 |
| 2800 | 200 | 215 |
| 3000 | 215 | 215 |
Different colors
Rolling shutter slats are made of aluminum and filled with a very dense ecologic foam for added strength and superior insulation value. The standard 39mm slat is our most commonly used slat.
