Roller Shutter
Slats

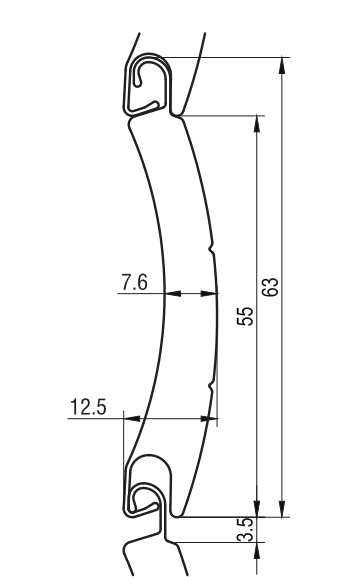

ALUMINUM SLAT 55MM*0.30MM
The 55mm slat is used for wider openings and free expanses between posts or columns.
Injected with an ecologic foam for insulation and rigidity
Roll-formed aluminum slat
Powder coated fifinish for longevity
5 standard colors
Slats interlock together to prevent separation under load.
Used for rolling shutters on warehouse doors, parking garages
and residential doors
Specifications
| size | 55mm |
| Norminal thickness | 12.8mm |
| Plate thickness | 0.3mm |
| Weight | 165g/m, 3kg/m² |
| Lighting hole size | 1.5x17mm |
| PU density | 60-65kg/m³ |
| Max shutter width | ≤4m |
| Max shutter height | ≤4m |
| Slats per meter | 18pcs |
Packing data
| Slat length | 5.8m-6.5m |
| Slats per package | 30pcs |
Reference size of winding diameter
| Height | 60 Shaft | 70 Shaft |
| 600 | 140 | 145 |
| 800 | 145 | 155 |
| 1000 | 165 | 175 |
| 1200 | 170 | 180 |
| 1400 | 185 | 185 |
| 1600 | 190 | 200 |
| 1800 | 200 | 200 |
| 2000 | 210 | 210 |
| 2200 | 210 | 225 |
| 2400 | 220 | 225 |
| 2600 | 230 | 230 |
| 2800 | 230 | 245 |
| 3000 | 235 | 245 |
| 3200 | 250 | 245 |
| 3400 | 250 | 265 |
| 3600 | 255 | 270 |
| 3800 | 270 | 270 |
| 4000 | 275 | 280 |
| 4200 | 275 | 290 |
| 4400 | 280 | 290 |
| 4600 | 290 | 290 |
| 4800 | 300 | 295 |
| 5000 | 300 | 310 |
Different colors
Rolling shutter slats are made of aluminum and filled with a very dense ecologic foam for added strength and superior insulation value. The standard 40mm slat is our most commonly used slat.

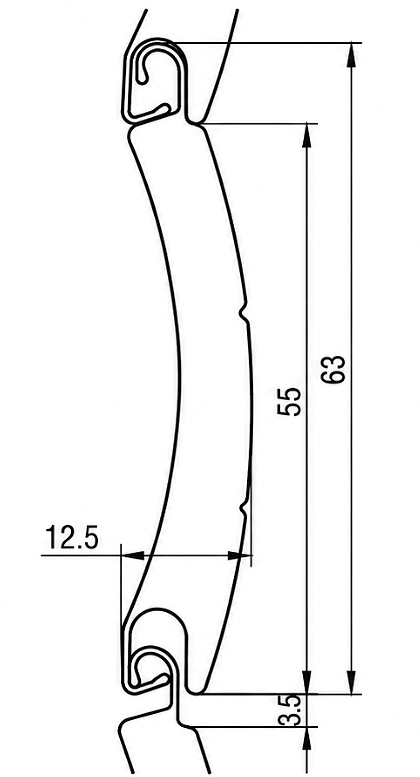

ALUMINUM SLAT 55MM*0.30MM
