Roller Shutter
Slats

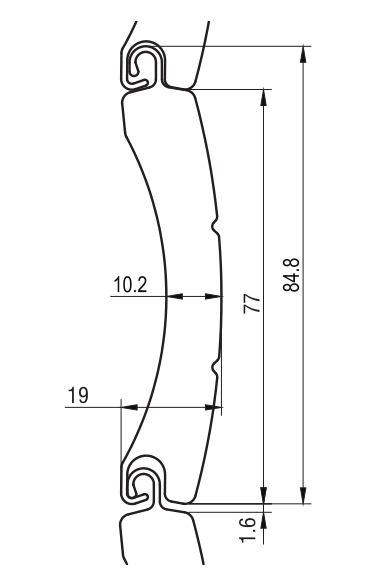

ALUMINUM SLAT 77MM*19.0MM
The 77mm slat is a kind of security profile with polyurethane foam insulation, and it has the highest level of rolling shutter protection.
Designed with the strength and durability
Ideal for storefronts that face risk of break-ins
Ideal for larger shutter systems and high security needs
Provide a high quality PVC coating on steel slats
Powder coated fifinish for longevity
Used for rolling shutter doors and garages
Roll-formed aluminum slat
Specifications
| size | 77mm |
| Norminal thickness | 19.0mm |
| Plate thickness | 0.44mm |
| Lighting hole size | / |
| PU density | 60kg/m³ |
| Max shutter width | ≤5.0m |
| Max shutter height | ≤4.0m |
| Slats per meter | 13 pcs |
Packing data
| Slat length | 4.0m-7.0m |
| Slats per package | 10 pcs |
Reference size of winding diameter
| Height | 70 Shaft | 100 Shaft |
| 1000 | 195 | 218 |
| 1200 | 217 | 225 |
| 1400 | 227 | 228 |
| 1600 | 235 | 247 |
| 1800 | 247 | 252 |
| 2000 | 257 | 267 |
| 2200 | 268 | 270 |
| 2400 | 273 | 285 |
| 2600 | 283 | 285 |
| 2800 | 290 | 298 |
| 3000 | 300 | 298 |
| 3200 | 300 | 312 |
| 3400 | 307 | 314 |
| 3600 | 315 | 328 |
| 3800 | 326 | 330 |
| 4000 | 328 | 336 |
| 4200 | 345 | 343 |
| 4400 | 348 | 346 |
| 4600 | 348 | 358 |
| 4800 | 365 | 362 |
| 5000 | 365 | 370 |
Different colors
Rolling shutter slats are made of aluminum and filled with a very dense ecologic foam for added strength and superior insulation value.

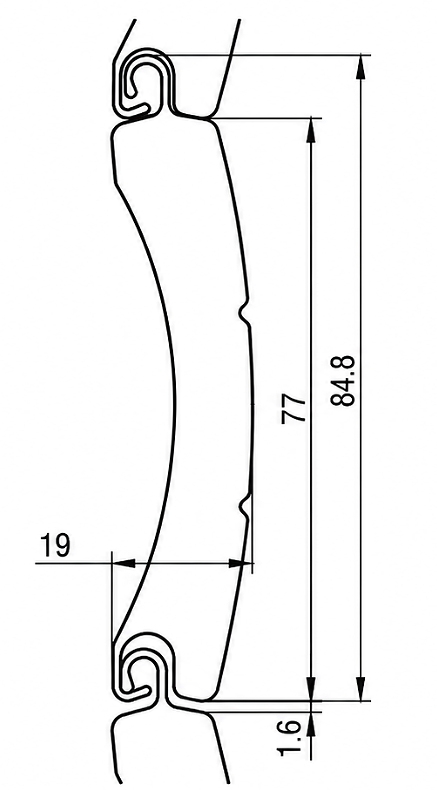

ALUMINUM SLAT 77MM*19.0MM
The 77mm slat is a kind of security profile with polyurethane foam insulation, and it has the highest level of rolling shutter protection.
Designed with the strength and durability
Ideal for storefronts that face risk of break-ins
Ideal for larger shutter systems and high security needs
Provide a high quality PVC coating on steel slats
Powder coated fifinish for longevity
Slats interlock together to prevent separation under load
Used for rolling shutter doors and garages
Specifications
| size | 77mm |
| Norminal thickness | 19.0mm |
| Plate thickness | 0.44mm |
| Lighting hole size | / |
| PU density | 60kg/m³ |
| Max shutter width | ≤5.0m |
| Max shutter height | ≤4.0m |
| Slats per meter | 13pcs |
Packing data
| Slat length | 4.0m-7.0m |
| Slats per package | 10pcs |
Reference size of winding diameter
| Height | 70 Shaft | 100 Shaft |
| 1000 | 195 | 218 |
| 1200 | 217 | 225 |
| 1400 | 227 | 228 |
| 1600 | 235 | 247 |
| 1800 | 247 | 252 |
| 2000 | 257 | 267 |
| 2200 | 268 | 270 |
| 2400 | 273 | 285 |
| 2600 | 283 | 285 |
| 2800 | 290 | 298 |
| 3000 | 300 | 298 |
| 3200 | 300 | 312 |
| 3400 | 307 | 314 |
| 3600 | 315 | 328 |
| 3800 | 326 | 330 |
| 4000 | 328 | 336 |
| 4400 | 348 | 346 |
| 4600 | 348 | 358 |
| 4800 | 365 | 362 |
| 5000 | 365 | 370 |
Different colors
Rolling shutter slats are made of aluminum and filled with a very dense ecologic foam for added strength and superior insulation value.
