39MM*0.22MM ALUMINUM SLAT
Rolling shutter slats are made of aluminum and fifilled with a very dense ecologic foam for added strength and superior insulation value. The standard 39mm/40mm/45mm slats are our most commonly used slats for rolling shutter windows.
Roll formed aluminum slat
Powder coated finish for longevity
Five standard colors
Slats interlock together to prevent separation under load
Used for rolling shutter on windows, kitchen cabinets, trucks and so on.
Specifications
| size | 39mm |
| Norminal thickness | 8.5mm |
| Plate thickness | 0.22mm |
| Weight | 82g/m, 2.1kg/m² |
| Lighting hole size | 1x12mm |
| PU density | 60-65kg/m³ |
| Max shutter width | ≤2.5m |
| Max shutter height | ≤3m |
| Slats per meter | 25.6pcs |
Packing data
| Slat length | 5.8m-6.5m |
| Slats per package | 60pcs |
Different colors
Rolling shutter slats are made of aluminum and filled with a very dense ecologic foam for added strength and superior insulation value. The standard 40mm slat is our most commonly used slat.

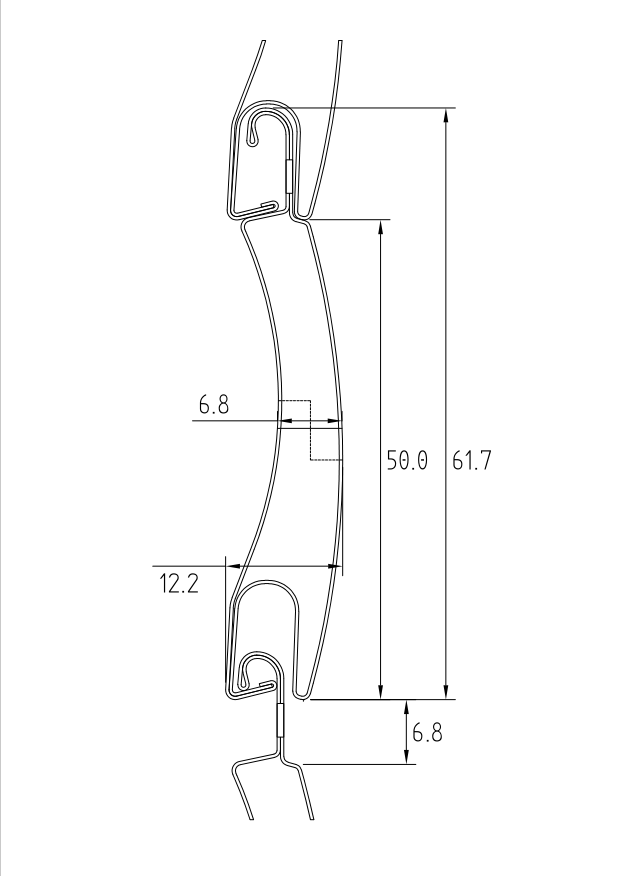

50MM*0.33MM ALUMINUM SLAT
The 50mm roller shutter slats are made with 0.33mm thick aluminum, offering higher strength and better stability.
The 140mm × 3.8mm wide holes provide natural ventilation and smooth airflow while greatly improving indoor day-lighting.
Filled with high-density, eco-friendly polyurethane foam. It blocks noise, keeps heat out in summer, and preserves warmth in winter—comfortable and energy-saving.
Fully blocks light for complete privacy. It also supports stop-at-any-position control, allowing you to adjust shading and lighting with ease.
Wide Light & Air Holes
0.33mm Thickened Aluminum
100% Blackout When Closed
Powder coated finish for longevity
High-Density Foam
Technical Date
TECHNICAL FEATURES
